Products Description

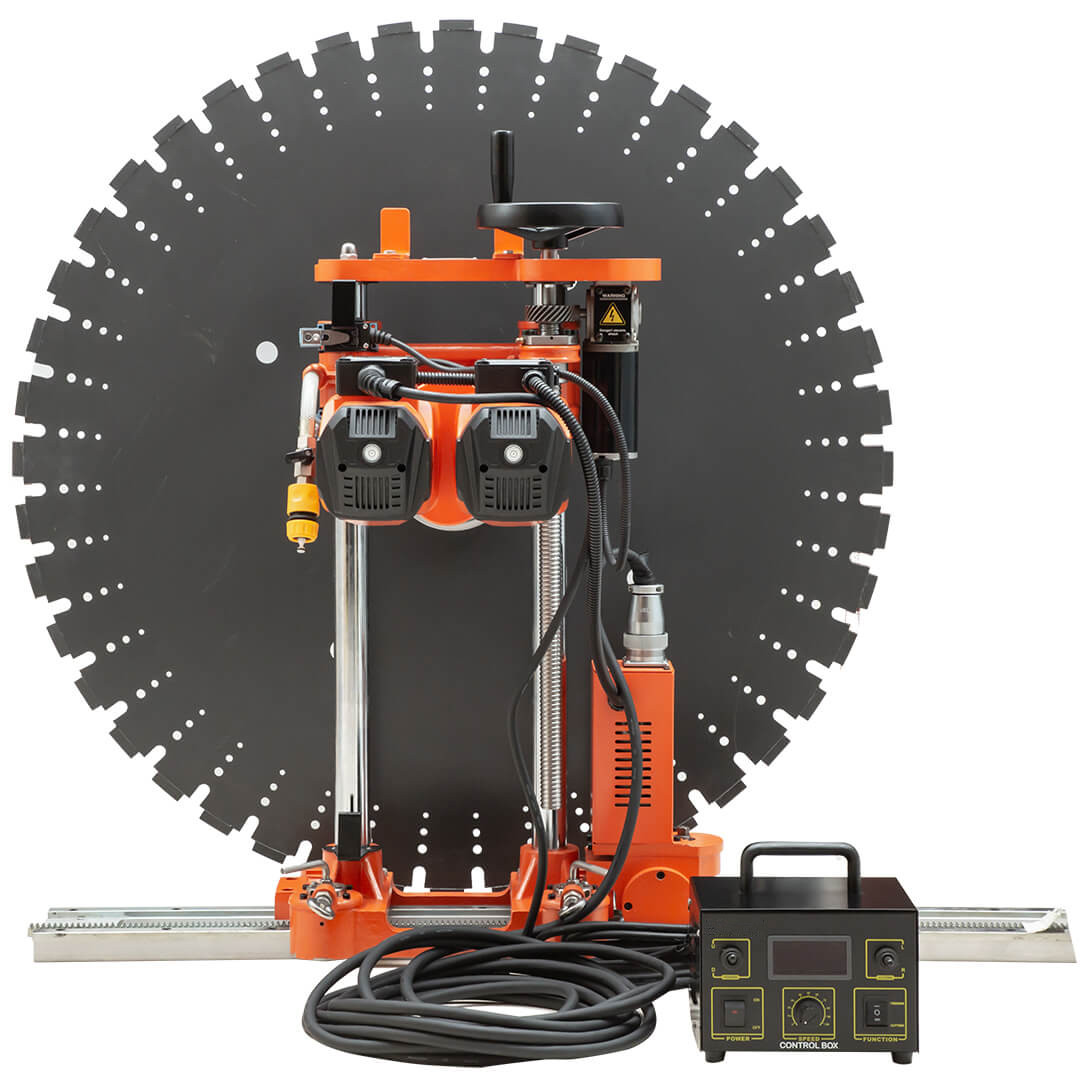

NewaLux double-head wall cutting machine is equipped with a 15-meter safety cable. The machine has electronic overload protection and mechanic clutch protection. The power is twice that of ordinary machines, the cutting speed is three times that of ordinary machines, while the weight is only increased by 9 kgs.
Wall saws use circular diamond blades on a track-mounted machine, which can accurately place the saw blades. The track system enables the wall saw to be attached to a horizontal or vertical surface.

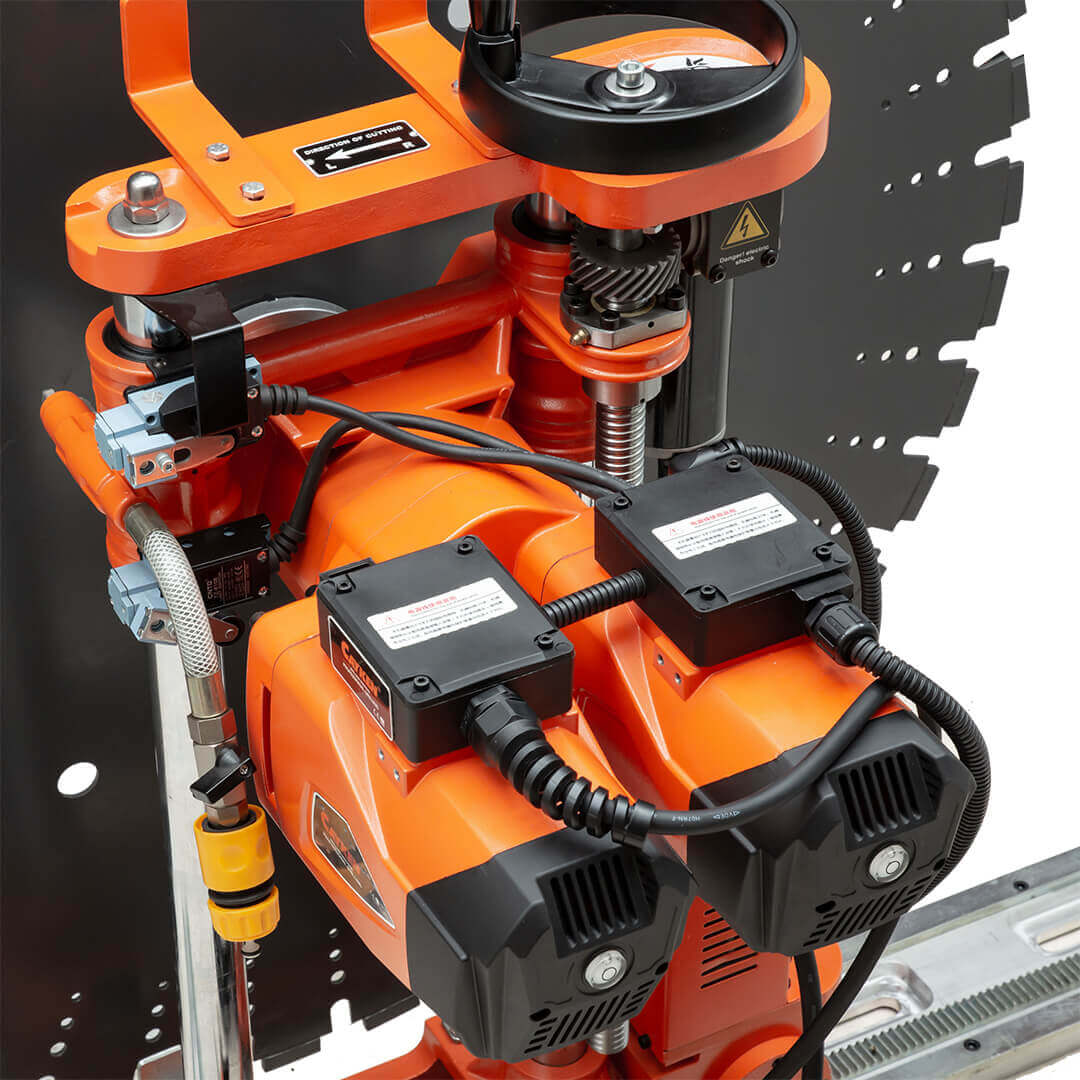

◆Dual motors, high efficiency(2.5times to single motor)
◆Electric feeding and cutting, electric track walking
◆Digital display, remote controller, safer
◆Auto-detached track, easy to operate
◆Manual/auto feeding switch
| Cutting Depth(mm) | 420 |
|---|---|
| Rated Voltage(v) | 110/220~ |
| Rated Frequency(Hz) | 50-60 |
| Rated Input Power(w) | 10800 |
| No-load Speed(rpm) | 280 |
| Cable length(m) | 3.5 |
| Blade Diameter(mm) | 300-1000 |
| Gross weight(kgs) | ≤44 |
| Packing size(mm) | 55*55*88 |
| Packing Material | PlyWood |
