Description
Products Description

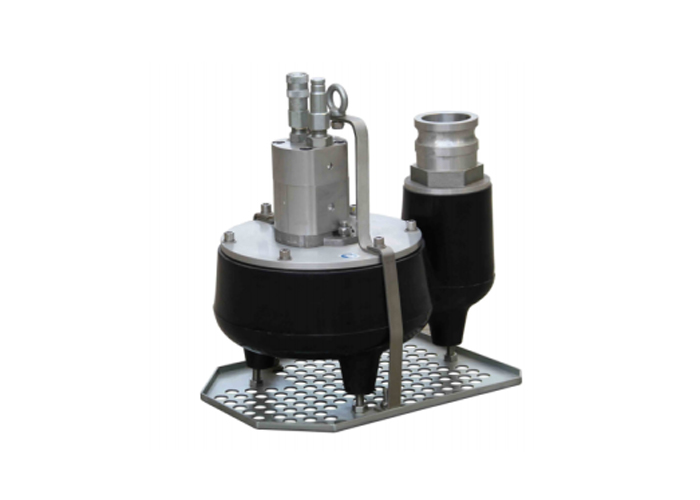

3" hydraulic submersible pump has more water environmental capacity and displacement than common one.
Pump high volumes of water, sand slurries, gravel, sludge and so on. Use for highway, municipal
affairs, gas, heavy rescue & recovery and natural disasters.
◎Features
◆Small size, light weight, and easy to carry
◆Cast from corrosion-resistant polyurethane and stainless steel, protects the pump from water
erosion and maintains stable performance over time.
◆Strong pumping capacity, allowing the pumping of solid content up to 25%, and the maximum of 3" hydraulic submersible pump
allowable pumpable particle diameter is up to 70mm.
| Type | T3-120 | T4Pro-220 | T6-240 |
|---|---|---|---|
| Weight (kg) | 16 | 25 | 29 |
| Output (m³/h) | 120 | 220 | 240 |
| Max. Head | 30 | 25 | 20 |
| Output flow(lpm) | 26-34 | 30-38 | 30-38 |
| Operating pressure(bar) | 105-140 | 105-160 | 105-160 |
| Dimension(mm) | 410×300×435 | 470×410×450 | 470×410×455 |
| Outlet (mm) | Φ75 | Φ100 | Φ150 |
